The 60w Pemfc Stack Module Stack Fuel Cell 12v Hydrogen Fuel Cell made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy 60w Pemfc Stack Module Stack Fuel Cell 12v Hydrogen Fuel Cell with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.
A controller module that manages the startup, shutdown, and all other standard functions of the fuel cell stack. A DC/DC converter will be required to convert the fuel cell power into the desired voltage and current .
This portable fuel cell stack can be easily connected with a high purity hydrogen source such as a compressed cylinder from a local gas supplier, hydrogen stored in a composite tank, or a compatible hydride cartridge to get the best performance.

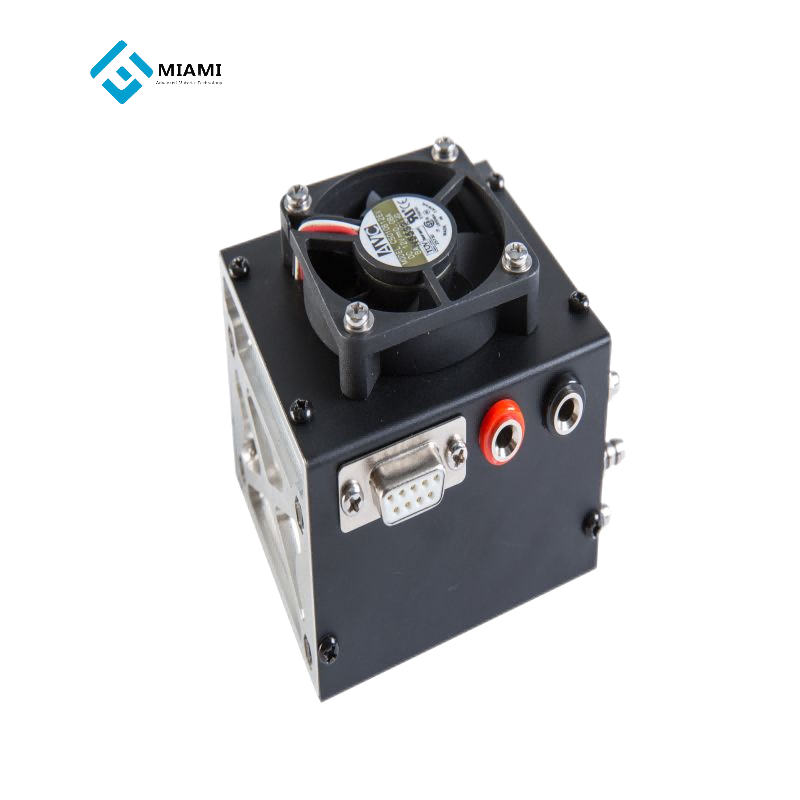

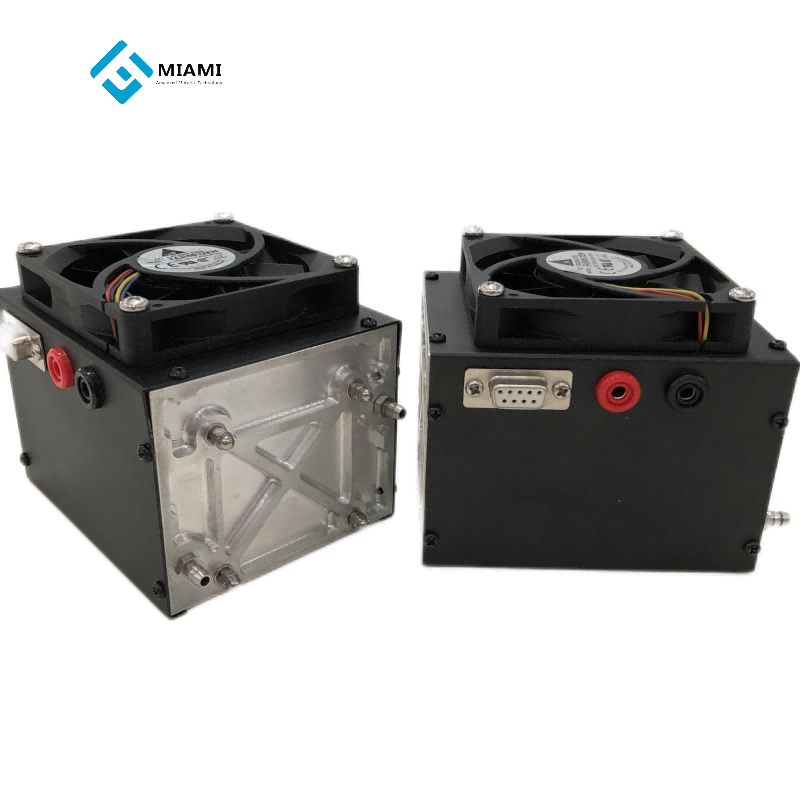

60W-12V Hydrogen Fuel Cell Stack
|
Inspecton Items & Parameter |
|||
|
Standard |
Analysis | ||
|
Output performance |
Rated power | 60W | 79.2W |
| Rated voltage | 12V | 12V | |
| Rated current | 5A | 6.6A | |
| DC voltage range | 8-17V | 12V | |
| Efficiency | ≥50% | ≥53% | |
| Fuel | Hydrogen purity | ≥99.99%(CO<1PPM) | 99.99% |
| Hydrogen pressure | 0.04~0.06Mpa | 0.05Mpa | |
| Hydrogen consumption | 600mL/min | ||
|
Environmental characteristics |
Working temperature | -5~35℃ | 28℃ |
| Working environment humidity | 10%~95%(No mist) | 60% | |
| Storage ambient temperature | -10~50℃ | ||
| Noise | ≤60dB | ||
-
