The Hydrogen Fuel Cell Kit Hydrogen Fuel Cell Stack made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Hydrogen Fuel Cell Kit Hydrogen Fuel Cell Stack with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.
A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.
The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

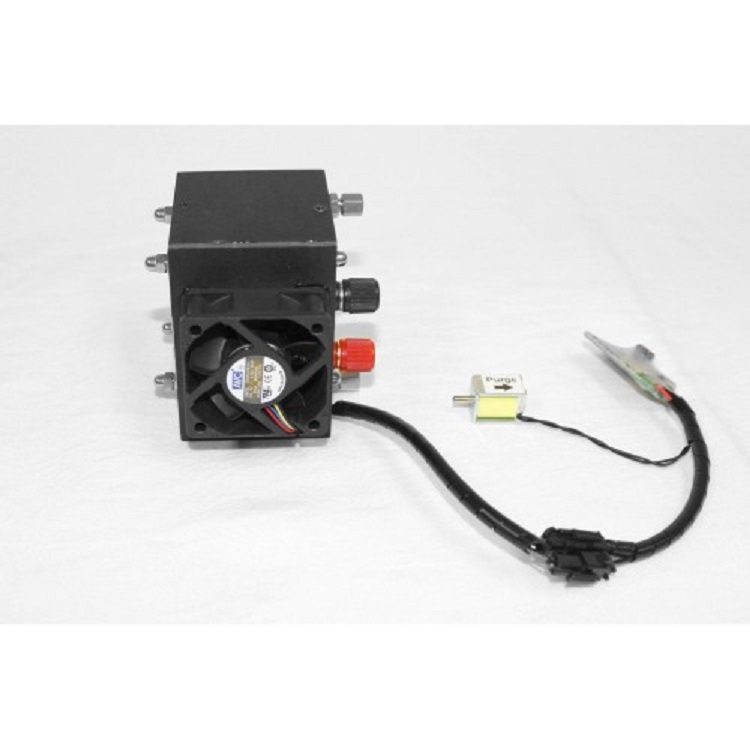

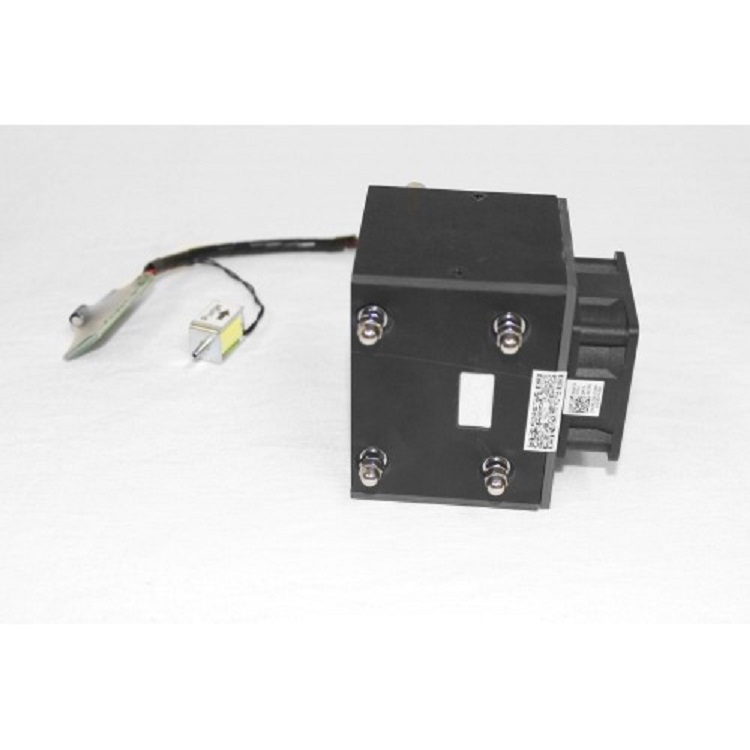

220W-24V Hydrogen Fuel Cell Stack
|
Inspecton Items & Parameter |
|||
|
Standard |
Analysis | ||
|
Output performance |
Rated power | 220W | 259.2W |
| Rated voltage | 24V | 24V | |
| Rated current | 9.16A | 10.8A | |
| DC voltage range | 20-36V | 24V | |
| Efficiency | ≥50% | ≥53% | |
| Fuel | Hydrogen purity | ≥99.99%(CO<1PPM) | 99.99% |
| Hydrogen pressure | 0.04~0.06Mpa | 0.05Mpa | |
|
Environmental characteristics |
Working temperature | -5~35℃ | 28℃ |
| Working environment humidity | 10%~95%(No mist) | 60% | |
| Storage ambient temperature | -10~50℃ | ||
| Noise | ≤60dB | ||
Why you can choose vet ?
1) we have sufficient stock guarantee.
2) professional packaging ensures product integrity. The product will be delivered to you safely.
3) more logistics channels enable products to be delivered to you.
-
