1.product presentation
The JRF-H35-01TA gas cylinder pressure relief valve is a gas supply valve specially designed for small hydrogen supply systems such as 35MPa. See Fig. 1, Figure 2 for the device, schematic diagram and physical objects.
JRF-H35-01TA cylinder pressure relief valve adopts integrated design, including pressure gauge, safety valve, one-way filling valve, manual switch valve, filter, secondary pressure relief valve.

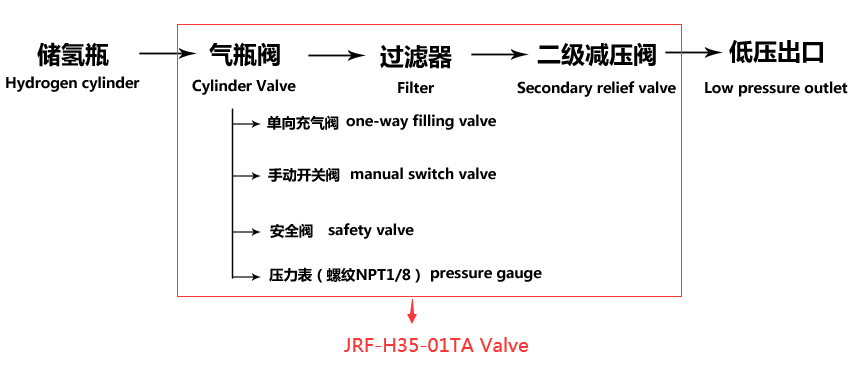

Fig. 1 Schematic diagram of JRF-H35-01TA cylinder pressure relief valve
Fig. 2 Physical drawing of JRF-H35-01TA cylinder pressure relief valve
Cylinder pressure relief valve module
JRF-H35-01TA cylinder relief valve adopts secondary forward pressure regulation mode, with high outlet pressure accuracy, good stability and less vibration.
One-way filling valve
The JRF-H35-01TA cylinder pressure relief valve uses the original one-way filling valve, acting as a stop valve when the module is inflated. Keep the manual switch valve closed without switching the valve.
2. Technical index
JRF-H35-01TA Technical Data
| 额定工作压力 Rated working pressure | 0~35MPa |
| 安全阀爆破压力 Bursting pressure of safety valve | 41.5~45MPa |
| 出口压力 Outlet pressure | 0.05~0.065MPa |
| 输出流量 Output flow | ≥80L/min |
| 整体外泄率 Overall leakage rate | ±3% |
| 壳体材质 Housing material | HPb59-1 |
| 接口形式 Interface | Customized on demand |
