Proton Exchange Membrane Cell Portable Hydrogen Fuel Cell Stack For UAVs

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Proton Exchange Membrane Cell Portable Hydrogen Fuel Cell Stack For UAVs anufacturer and supplier. we are focusing on new material technology and automotive products.


Product Detail

Product Tags

The Proton Exchange Membrane Cell Portable Hydrogen Fuel Cell Stack For UAVs made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Proton Exchange Membrane Cell Portable Hydrogen Fuel Cell Stack For UAVs with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.

A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. This assembly of cells is called a fuel cell stack, or just a stack.

The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

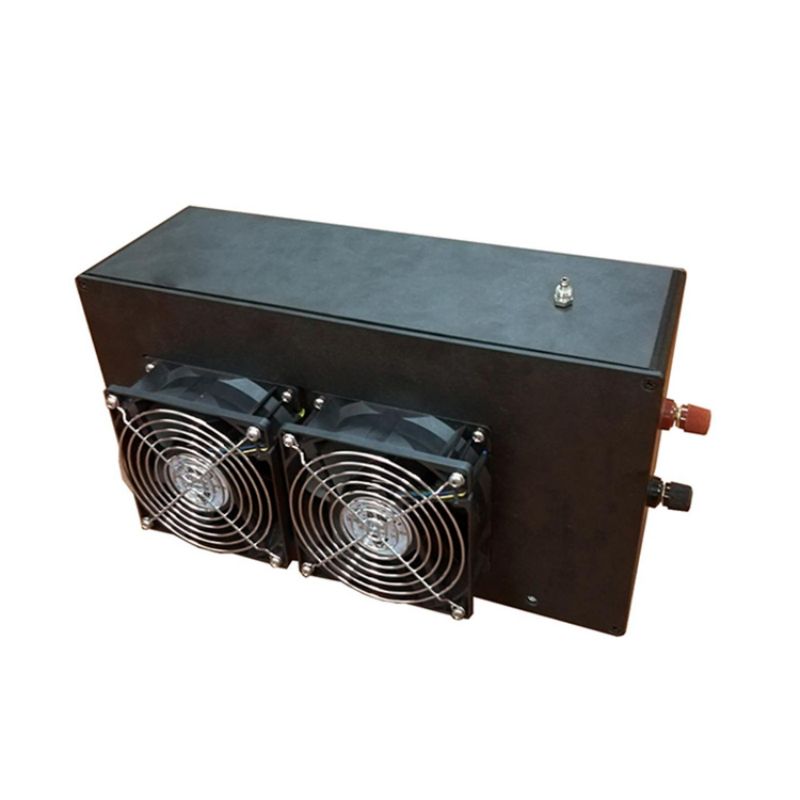

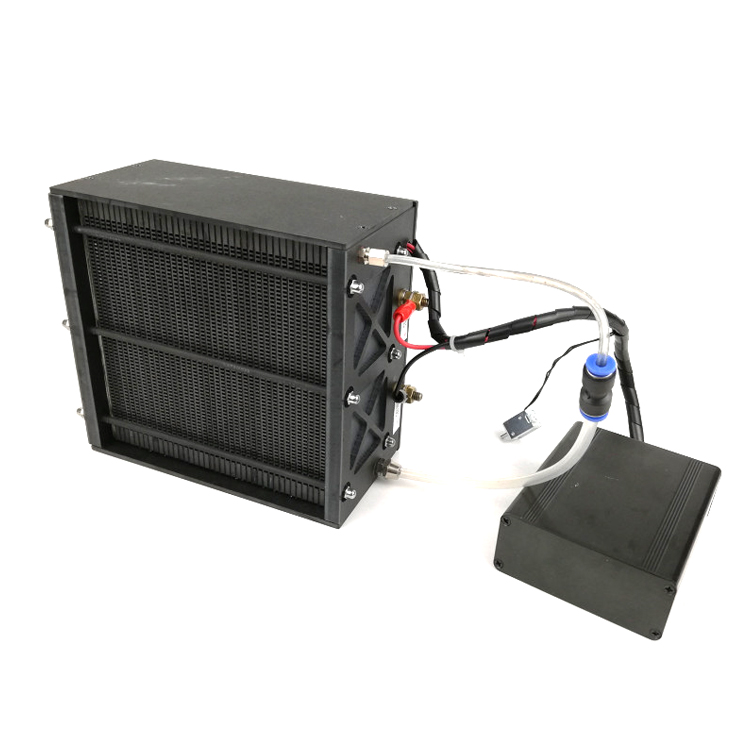

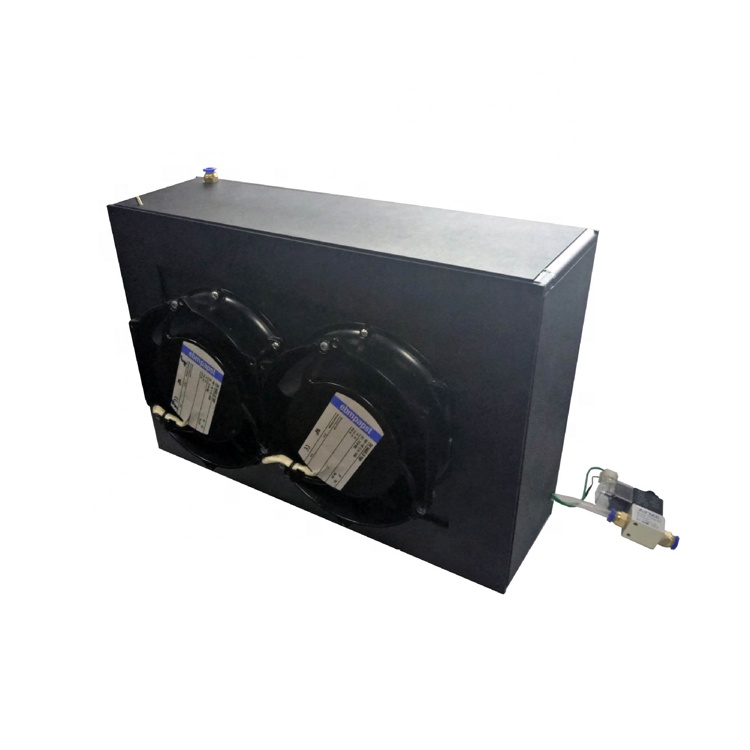

1000W-24V Hydrogen Fuel Cell Stack

Inspection Items & Parameter

Standard

Output performance

Rated power 1000W
Rated voltage 24V
Rated current 42A
DC voltage range 22-38V
Efficiency ≥50%

Fuel

Hydrogen purity ≥99.99%(CO<1PPM)
Hydrogen pressure 0.045~0.06Mpa


Environmental characteristics

Working temperature -5~35℃

Working environment humidity

10%~95%(No mist)

Storage ambient temperature

-10~50℃
Noise ≤60dB
Physical parameter  Stack size(mm)  156*92*258mm

 Weight (kg)

 2.45Kg

161 17 73 5

FAQ

Q: Are you trading company or manufacturer?

A:We are an more than 10 vears factory with iso9001 certificacted

Q:How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock,or 10-15 days if the goods are not in stock, it is according to your quantity.

Q: How can Iget the sample to check your quality?

A: After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality,we will provide you sample for free as long as you afford the express freight.

Q:What is your terms of payment?

A: We accept payment by Western union,Pavpal,Alibaba,T/TL/Cetc..for bulk order,we do 30% deposit balance before shipment.

if you have another question,pls feel free to contact us as below
