Vet 1000w Hydrogen Fuel Cell 24v Pemfc Stack For Uav And Electric Motorcycles

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Vet 1000w Hydrogen Fuel Cell 24v Pemfc Stack For Uav And Electric Motorcycles anufacturer and supplier.

we are focusing on new material technology and automotive products.


Product Detail

Product Tags

The Vet 1000w Hydrogen Fuel Cell 24v Pemfc Stack For Uav And Electric Motorcycles made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Vet 1000w Hydrogen Fuel Cell 24v Pemfc Stack For Uav And Electric Motorcycles with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.



A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.



The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

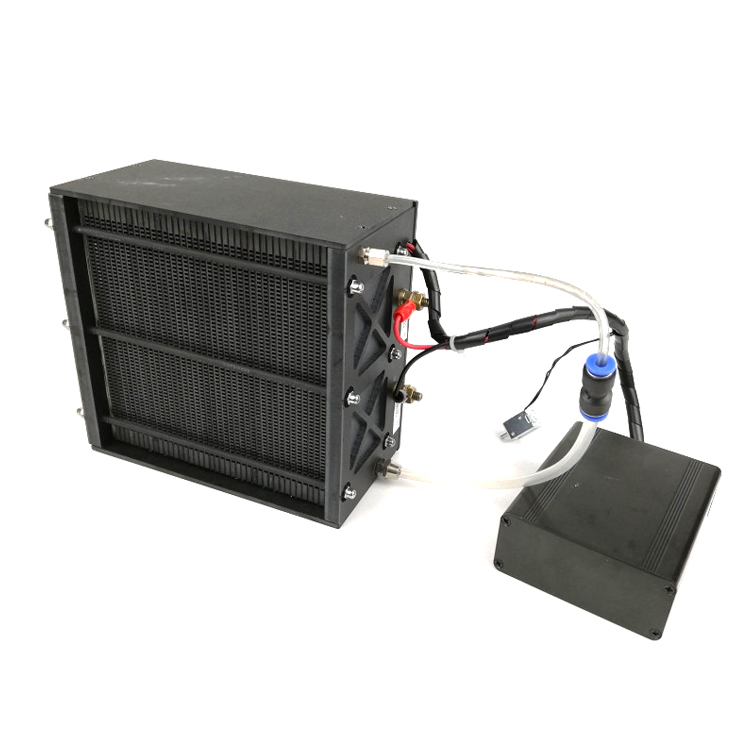

1000W-24V Hydrogen Fuel Cell Stack

Inspection Items & Parameter

Standard

Output performance

Rated power 1000W
Rated voltage 24V
Rated current 42A
DC voltage range 22-38V
Efficiency ≥50%


Fuel

Hydrogen purity ≥99.99%(CO<1PPM)
Hydrogen pressure 0.045~0.06Mpa


Environmental characteristics

Working temperature -5~35℃

Working environment humidity

10%~95%(No mist)

Storage ambient temperature

-10~50℃
Noise ≤60dB
Physical parameter  Stack size(mm)  156*92*258mm

Weight (kg)

2.45Kg

142 73 6_49578 3 4

VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.



Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.



With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.

5 8 12 1111111
