Metal hydrogen fuel cell 200w hydrogen generator Hydrogen fuel cell Pemfc stack

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Metal hydrogen fuel cell 200w hydrogen generator Hydrogen fuel cell Pemfc stack ufacturer and supplier. we are focusing on new material technology and automotive products.

Send email to us Download as PDF

Product Detail

Product Tags

The Metal hydrogen fuel cell 200w hydrogen generator Hydrogen fuel cell Pemfc stack made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Metal hydrogen fuel cell 200w hydrogen generator Hydrogen fuel cell Pemfc stack with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.

Product Introduction

200W hydrogen fuel cell stack can produce 200W of nominal power and brings you full energy independence for various applications that require power in the range of 0-200W.

2. Product Parameter

Output Performance
Nominal Power	200 W
Nominal Voltage	15 V
Nominal Current	13.3 A
DC Voltage Range	14 - 24 V
Efficiency	>50% at the nominal power

Hydrogen Fuel
Hydrogen Purity	>99.99% (CO content <1 ppm)
Hydrogen Pressure	0.04 - 0.06 MPa
Hydrogen Consumption	2330mL/min (at nominal power)

Environmental Characteristics
Ambient Temperature	-5 to +35 ºC
Ambient Humidity	10% RH to 95% RH (No misting)
Storage Ambient Temperature	-10 to +50 ºC
Noise	<60 dB

Physical Characteristics
Stack Size	14010570 mm
Stack weight	0.65kg
System size	140110108mm
System Weight	1.19kg

3.Product Feature And Application

Product features:

Many product models and types

It can be customized according to customer requirements

Good environmental adaptability and adapt to various weather changes

Light weight, small volume, easy to install and move

Applications:

Back-up power

Hydrogen bicycle

Hydrogen UAV

Hydrogen vehicle

Hydrogen energy teaching aids

Reversible hydrogen production system for power generation

Case display

4. Product Details

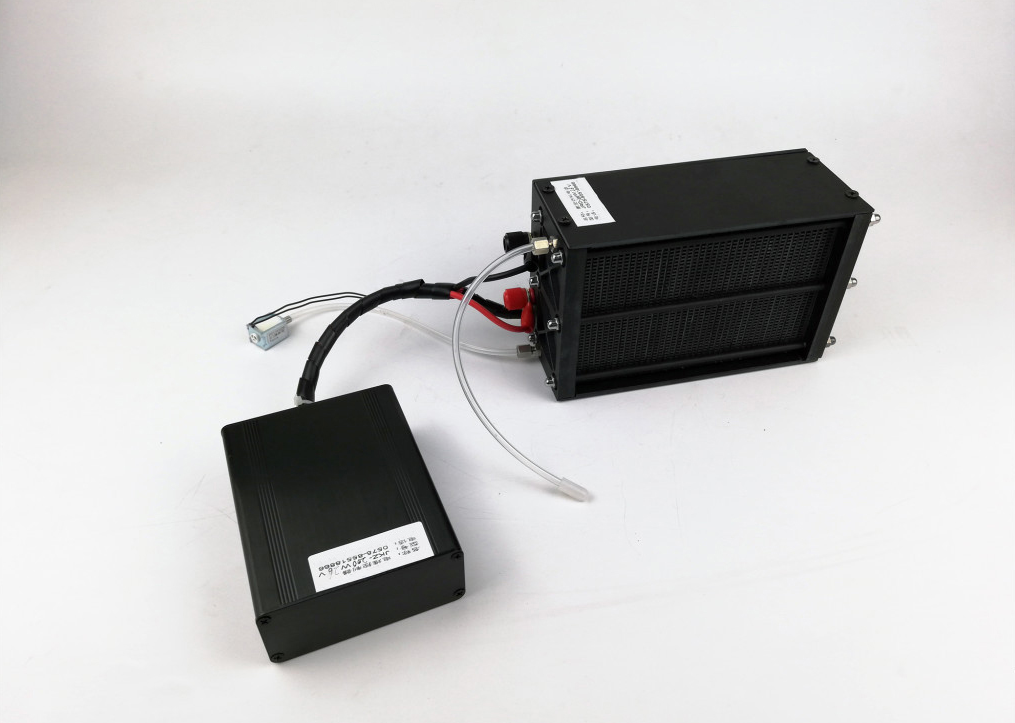

A controller module that manages the startup, shutdown, and all other standard functions of the fuel cell stack.

This portable fuel cell stack can be easily connected with a high purity hydrogen source such as a compressed cylinder from a local gas supplier, hydrogen stored in a composite tank, or a compatible hydride cartridge to get the best performance.

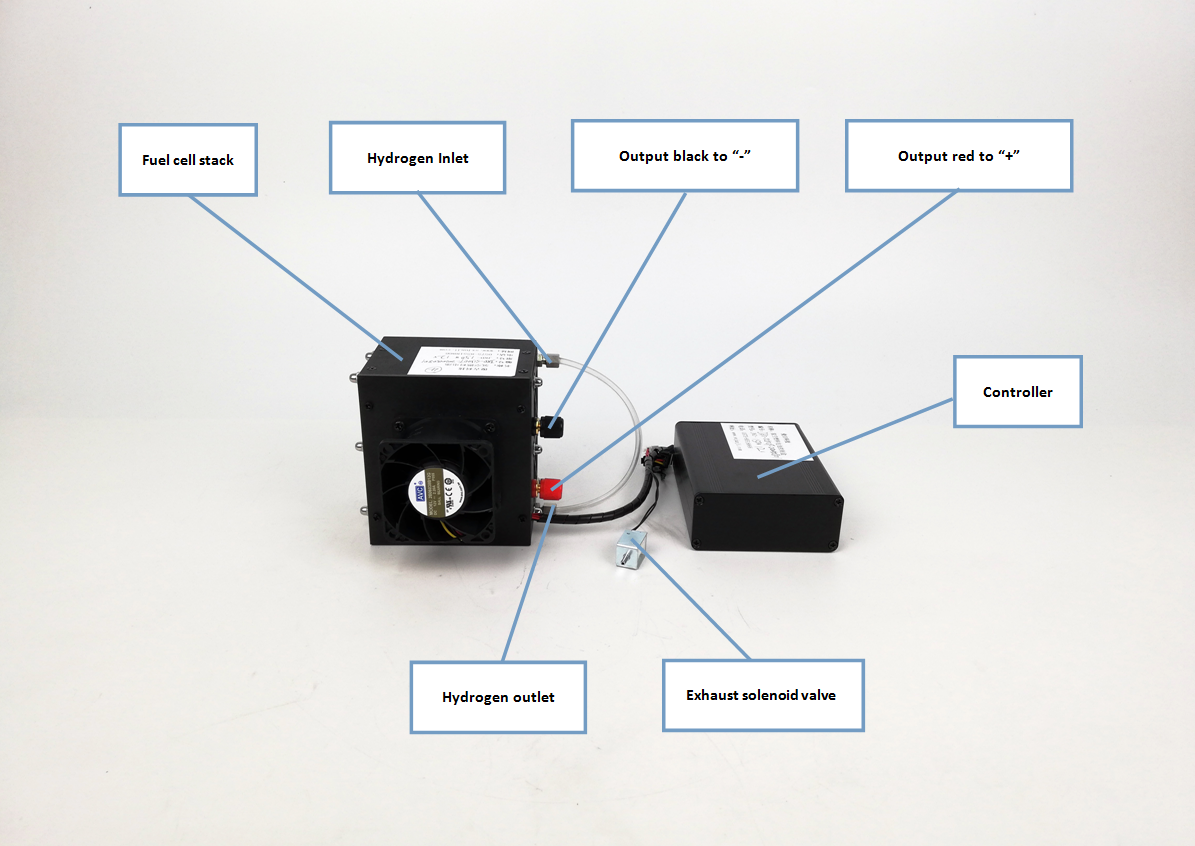

Fuel cell stack constructure:
