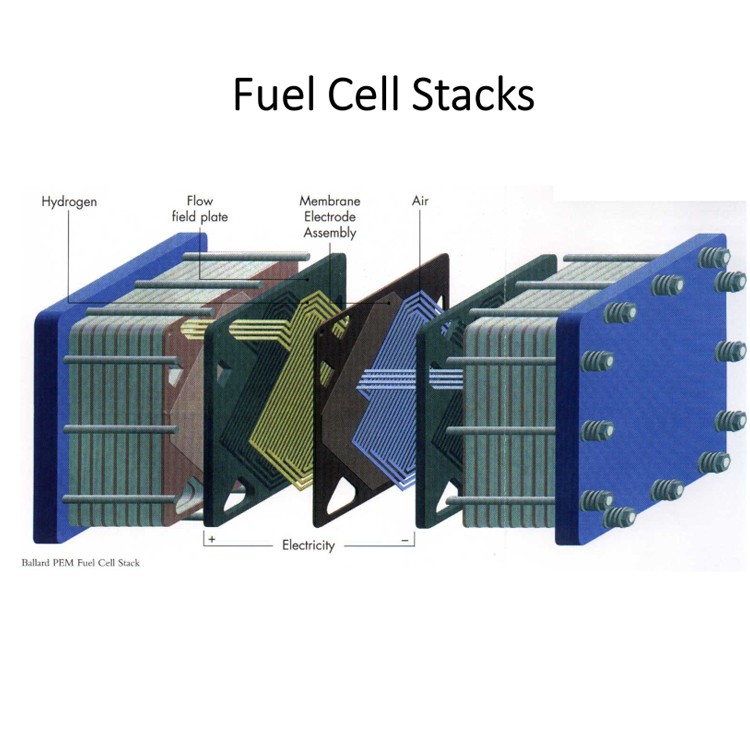

A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.
The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

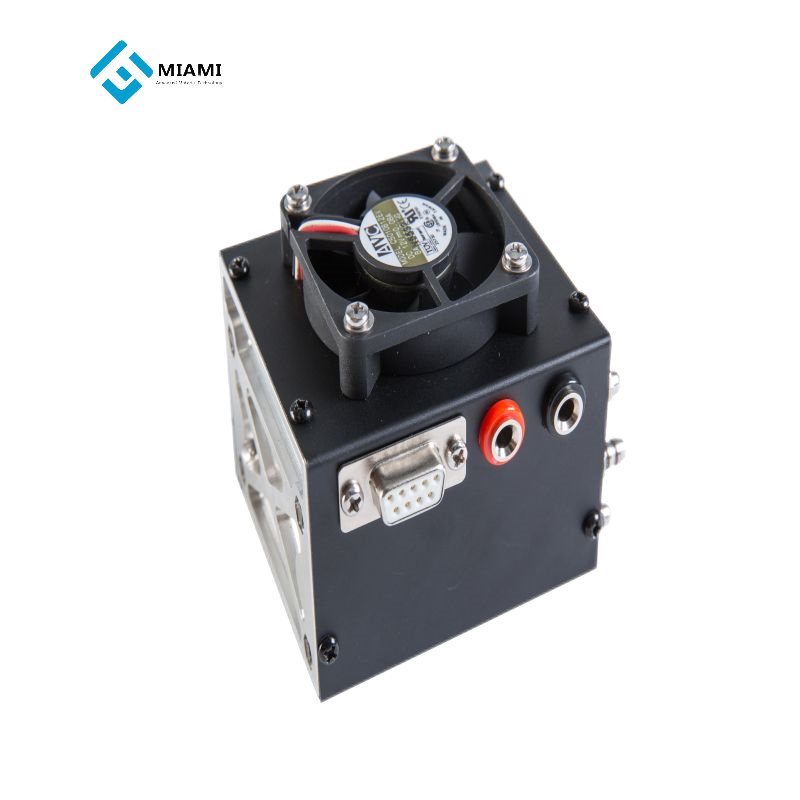

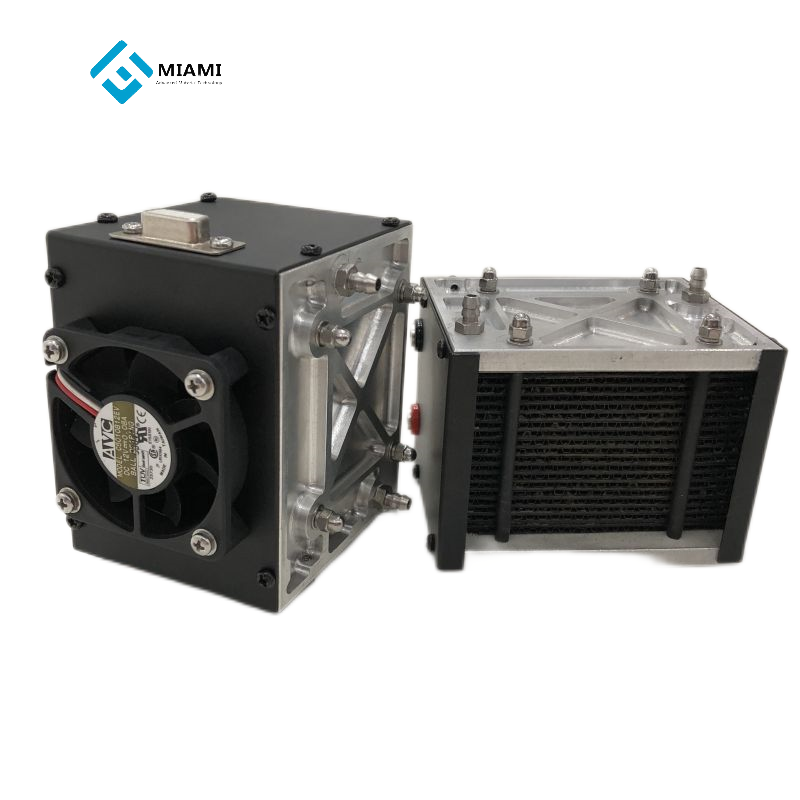

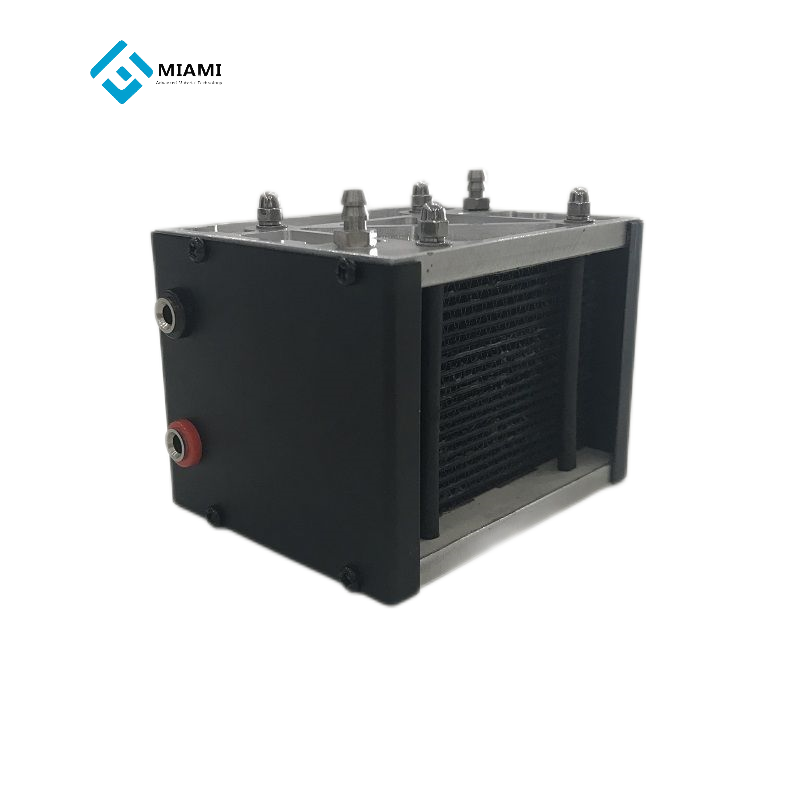

60W-12V Hydrogen Fuel Cell Stack
|
Inspecton Items & Parameter |
|||
|
Standard |
Analysis | ||
| Output performance | Rated power | 60W | 79.2W |
| Rated voltage | 12V | 12V | |
| Rated current | 5A | 6.6A | |
| DC voltage range | 8-17V | 12V | |
| Efficiency | ≥50% | ≥53% | |
| Fuel | Hydrogen purity | ≥99.99%(CO<1PPM) | 99.99% |
| Hydrogen pressure | 0.04~0.06Mpa | 0.05Mpa | |
| Hydrogen consumption | 600mL/min | ||
|
Environmental characteristics |
Working temperature | -5~35℃ | 28℃ |
| Working environment humidity | 10%~95%(No mist) | 60% | |
| Storage ambient temperature | -10~50℃ | ||
| Noise | ≤60dB | ||

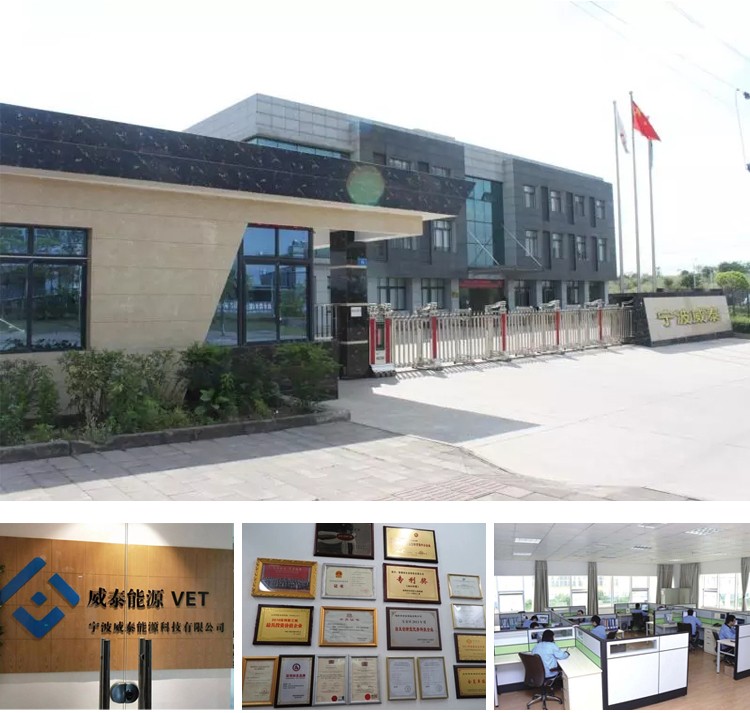

VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.

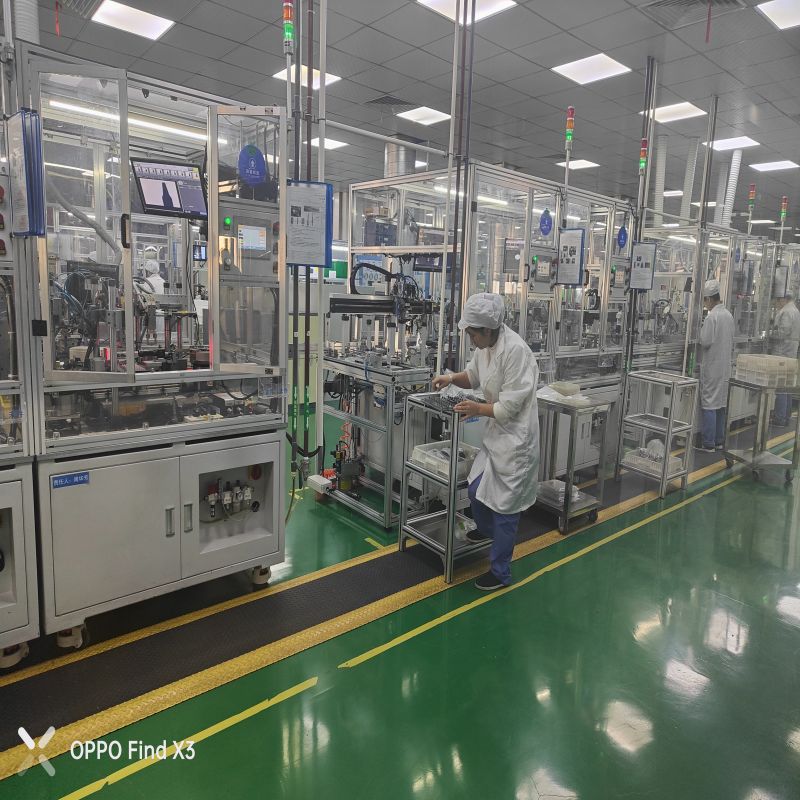

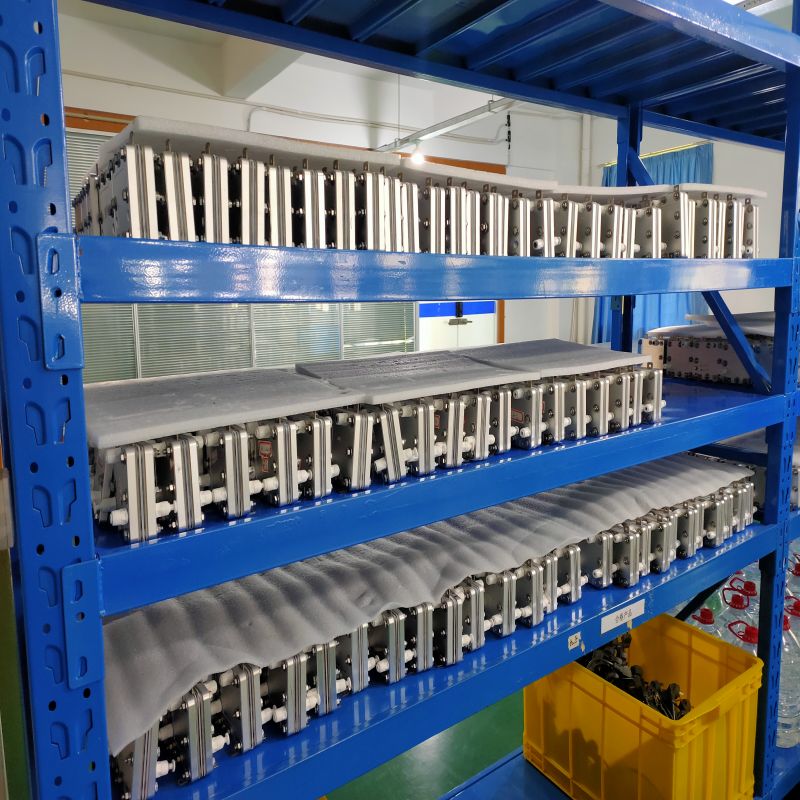

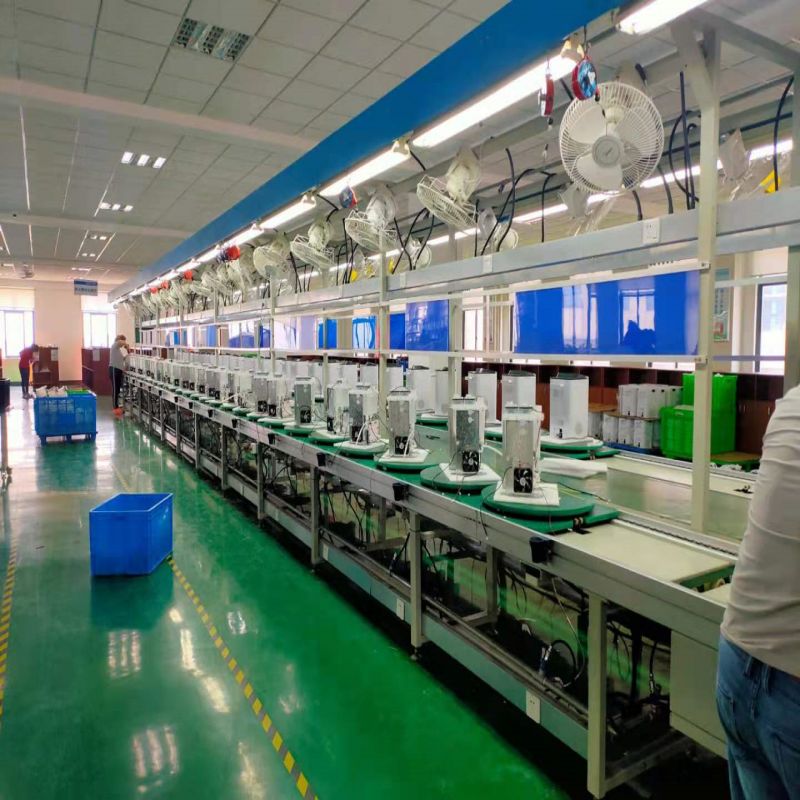

Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.
With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.
FAQ
Q: Are you trading company or manufacturer?
A:We are an more than 10 vears factory with iso9001 certificacted
Q:How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock,or 10-15 days if the goods are not in stock, it is according to your quantity.
Q: How can Iget the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality,we will provide you sample for free as long as you afford the express freight.
Q:What is your terms of payment?
A: We accept payment by Western union,Pavpal,Alibaba,T/TL/Cetc..for bulk order,we do 30% deposit balance before shipment.
if you have another question,pls feel free to contact us as below
-
