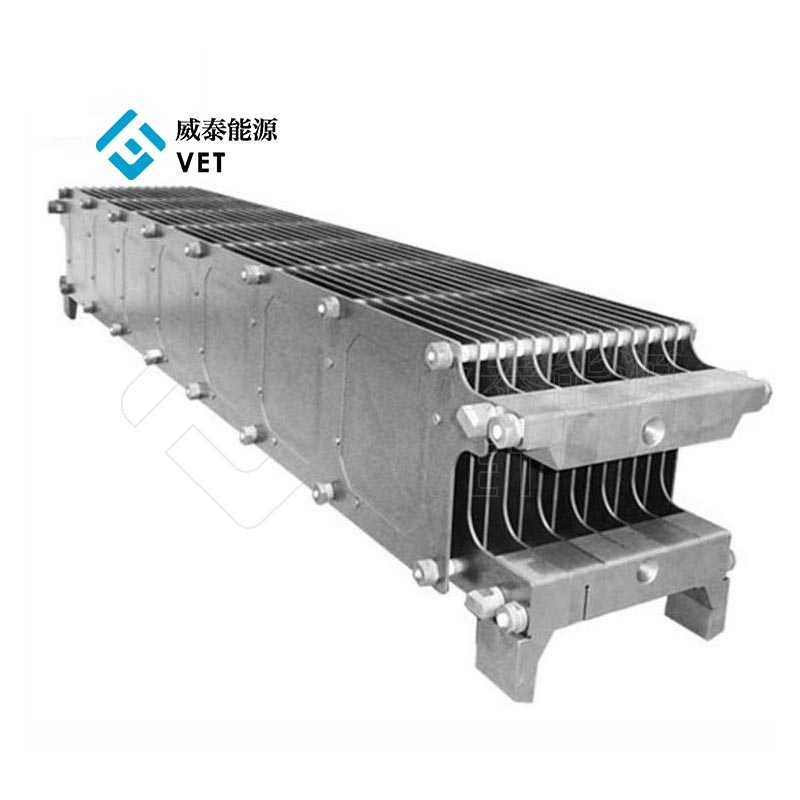

Semiconductor Grade Graphite Boats: Extreme Purity and Thermal Stability

Core Summary: Semiconductor-grade graphite boats require ppb-level boron control, ≥1.85 g/cm³ density, and TaC coatings for SiC crystal growth above 2200°C.

Why Semiconductor Applications Demand Ultra-High Purity

Key takeaway: Semiconductor-grade graphite boats require ppb-level control of boron, aluminum, and transition metals. Ash content alone is insufficient for qualification.

If you‘re moving from photovoltaic production to semiconductor manufacturing, the first thing you‘ll notice is that the purity conversation changes completely. In PV, ash content around 0.1% (1000 ppm) is often acceptable. In semiconductor crystal growth, that number needs to drop to 50 ppm or lower — and specific elements like boron need to be controlled at the ppb level.

The reason comes down to how semiconductor materials respond to trace contamination. In SiC crystal growth, boron and aluminum act as p-type dopants. Even a few ppb of these elements can create free holes in the crystal lattice, destabilizing the electrical properties of the entire boule. As one engineer from CETC 2 put it, graphite component impurities need to be below 5×10⁻⁶, with boron and aluminum specifically controlled below 0.1×10⁻⁶.

That‘s not a specification you can verify with a standard ash content test. Ash content tells you the total residue weight, but it doesn‘t tell you which elements are present. You need elemental analysis — ICP-MS or GDMS — to see what‘s actually in the graphite.

Key Technical Parameters for Semiconductor Grade Boats

Key takeaway: Semiconductor-grade boats are stricter across the board: denser, stronger, purer. The ppb-level boron specification is the most critical and the most difficult to verify.

When evaluating a semiconductor-grade graphite boat, these are the parameters that matter most. They‘re stricter than PV-grade in every dimension.

Table 1: PV-Grade vs Semiconductor-Grade Graphite Boat Specifications

Data compiled from SEMI C-001, industry supplier specifications, and semiconductor tool OEM purity requirements.

The density difference between PV-grade and semiconductor-grade seems small — 1.78 vs 1.85 g/cm³ — but it translates to a significant difference in oxidation resistance and mechanical stability at high temperatures. Higher density means fewer open pores, which means less surface area for moisture adsorption and chemical attack.

The Boron Contamination Case: Why 100 ppb Matters

Key takeaway: Boron contamination at the 100 ppb level can ruin an entire SiC crystal growth run. Always require elemental analysis, not just ash content.

Here’s a case that illustrates why ppb-level control isn‘t over-engineering.

A SiC crystal growth furnace was using graphite components with a boron content of approximately 100 ppb — well within the specification for most industrial graphite grades. During crystal growth at 2300°C, the boron diffused from the graphite into the SiC vapor phase and incorporated into the growing crystal. The result was a p-type doping shift in the crystal that made the entire boule unsuitable for power device applications.

The financial impact: the boule was worth tens of thousands of dollars, and the entire growth run — 80 hours of furnace time — was wasted. The root cause wasn’t a process error or a furnace malfunction. It was a specification that looked clean on paper but contained an element that mattered at a concentration no one had measured.

This is why semiconductor-grade graphite boats require full elemental analysis reports, not just ash content. The specific elements matter more than the total. As one patent notes, even the lowest-ash graphite commercially available typically contains boron above 0.2 ppm — and in some cases up to 1 ppm. For semiconductor applications, that‘s already too high.

Applications in SiC Crystal Growth and Epitaxy

Key takeaway: SiC crystal growth is the most demanding application for graphite components. Uncoated graphite degrades quickly; TaC coating is the current industry standard for protecting critical furnace components.

SiC crystal growth is the most demanding application for graphite boats and related furnace components. The process operates at 2100–2400°C using physical vapor transport (PVT), and at those temperatures, almost no other material can survive.

Graphite is used because it‘s the only material that combines the necessary thermal stability, thermal conductivity, and machinability. But even graphite degrades in the SiC growth environment. The SiC source powder sublimates into corrosive gaseous species — Si, SiC₂, Si₂C — that attack the graphite crucible surface.

That‘s where protective coatings come in. For SiC crystal growth, the two coatings that matter are SiC and TaC. TaC in particular has become the coating of choice for high-quality SiC crystal growth because it‘s stable above 2200°C and provides excellent corrosion resistance against the aggressive SiC vapor atmosphere.

Protective Coatings: SiC and TaC for Extended Lifespan

Key takeaway: SiC coatings are the standard for most semiconductor applications. TaC coatings are reserved for the most demanding SiC crystal growth environments, where they deliver dramatic defect reduction but require careful interface engineering.

Both SiC and TaC coatings extend graphite component life, but they serve different purposes and different temperature ranges.

Table 2: SiC vs TaC Coating Comparison

Data compiled from Ceramics International (2025) and coating supplier specifications.

The TaC coating data is particularly striking. A 2025 study in Ceramics International showed that TaC-coated graphite reduced micropipe defects by up to 99.7% and threading edge dislocations by 80.5% compared to uncoated graphite. For SiC crystal growth, where defect density directly determines wafer yield and device performance, that‘s a meaningful improvement.

But TaC coatings have their own challenges. The thermal expansion mismatch between TaC and graphite causes stress at the interface during thermal cycling, which can lead to coating cracking or spalling. An embedded TaC coating structure — where the coating partially penetrates into the graphite substrate — has been shown to achieve bonding strength of 21.01 MPa, significantly higher than physical adsorption or chemical bonding coatings.

Frequently Asked Questions

Q1: What‘s the difference between ash content and elemental impurity analysis?

Ash content measures the total weight of non-carbon residue after burning. It tells you how much impurity is present in total, but not which elements. Elemental analysis (ICP-MS or GDMS) identifies and quantifies specific elements like boron, aluminum, and iron. For semiconductor applications, you need elemental analysis because the specific elements matter more than the total. A boat with 5 ppm ash that‘s mostly boron is worse than one with 20 ppm ash that‘s mostly silicon.

Q2: Can I use a PV-grade graphite boat in a semiconductor process?

No, and the cost of trying is high. PV-grade boats have ash content around 0.1% and no specification for boron or aluminum. In a semiconductor process, those elements will diffuse into the crystal and cause doping shifts. The cost of one failed SiC growth run — tens of thousands of dollars — dwarfs the cost difference between a PV-grade and semiconductor-grade boat.

Q3: How do I verify that a supplier‘s graphite boat meets ppb-level purity requirements?

Ask for batch-level elemental analysis reports using ICP-MS or GDMS. The report should cover B, Al, Fe, Cu, and other transition metals. Look for boron specifically — it‘s the most critical element and often the hardest to control. SEMI C-001 provides the framework for specification and verification. At VET Energy, we provide full elemental analysis with every semiconductor-grade boat shipment.

Q4: What‘s the actual lifespan of a TaC-coated graphite boat in SiC crystal growth?

Lifespan depends on the coating quality, the specific growth conditions, and the thermal cycling profile. High-quality embedded TaC coatings can last significantly longer than uncoated graphite or simple SiC coatings, but the exact number depends on your furnace and process. The key metric to track is coating integrity — monitor for cracking or spalling during maintenance inspections.

Q5: Why does boron contamination matter so much in SiC crystal growth?

Boron acts as a p-type dopant in SiC. Even at ppb concentrations, it creates free holes in the crystal lattice, shifting the electrical properties away from the intended n-type or semi-insulating behavior. For power devices, that shift can make the material unusable. In SiC crystal growth, the graphite components are the primary source of boron contamination because boron is a common impurity in graphite raw materials.

Summary and How VET Energy Can Help

Semiconductor-grade graphite boats are a different class of product from PV-grade boats. The purity requirements are stricter, the density and strength specifications are higher, and the consequences of contamination are far more severe. If you‘re specifying graphite components for SiC crystal growth or semiconductor epitaxy, you need a supplier who understands these differences and can provide the documentation to prove it.

At VET Energy, we work with semiconductor manufacturers to define the right graphite boat specification for their process. Our engineering team provides batch-level elemental analysis with every semiconductor-grade shipment, and we work with you to select the right coating — SiC or TaC — for your specific furnace environment and temperature profile. Dr. Wang, our technical lead, has 12 years of experience in graphite component design for semiconductor and photovoltaic applications.

If you‘re evaluating graphite boats for a semiconductor process or troubleshooting contamination issues, contact us for a technical consultation. We‘ll review your process parameters and recommend a specification that fits.

References

1. SEMI C-001 — Specification for High-Purity Graphite. SEMI International Standards. (Framework for metallic contamination limits)
2. Wei, T., Guo, H., et al. “Enhanced SiC crystal growth via thermo-reactive TaC coating synthesis on porous graphite.” Ceramics International, 2025, 51(19), 29457–29464. (TaC coating performance data: 99.7% micropipe reduction, 80.5% TED reduction)
3. “Strong bonding of tantalum carbide coating with an embedded structure on graphite.” Ceramics International, 2025. (Embedded TaC coating bonding strength: 21.01 MPa)
4. The Second Research Institute of China Electronics Technology Group Corporation (CETC). “Semiconductor Wafers and Graphite: A Materials Science Analysis from ‘Thermal Field Skeleton’ to ‘Yield Threat’”.” 2026. (Boron and aluminum purity requirements for SiC growth)
5. US Patent Application. “Vapor Deposition Apparatus and Techniques Using High Purity Polymer Derived Silicon Carbide.” 2023. (Boron content in commercially available graphite)
