What is TaC Coating?

In the rapidly evolving semiconductor industry, materials that enhance performance, durability, and efficiency are critical. One such innovation is Tantalum Carbide (TaC) coating, a cutting-edge protective layer applied to graphite components. This blog explores TaC coating’s definition, technical advantages, and its transformative applications in semiconductor manufacturing.

Ⅰ. What is TaC Coating?

TaC coating is a high-performance ceramic layer composed of tantalum carbide (a compound of tantalum and carbon) deposited onto graphite surfaces. The coating is typically applied using Chemical Vapor Deposition (CVD) or Physical Vapor Deposition (PVD) techniques, creating a dense, ultra-pure barrier that protects graphite from extreme conditions.

Key Properties of TaC Coating

● High-Temperature Stability: Withstands temperatures exceeding 2200°C, outperforming traditional materials like silicon carbide (SiC), which degrades above 1600°C.

● Chemical Resistance: Resists corrosion from hydrogen (H₂), ammonia (NH₃), silicon vapors, and molten metals, critical for semiconductor processing environments.

● Ultra-High Purity: Impurity levels below 5 ppm, minimizing contamination risks in crystal growth processes.

● Thermal and Mechanical Durability: Strong adhesion to graphite, low thermal expansion (6.3×10⁻⁶/K), and hardness (~2000 HK) ensure longevity under thermal cycling.

Ⅱ. TaC Coating in Semiconductor Manufacturing: Key Applications

TaC-coated graphite components are indispensable in advanced semiconductor fabrication, particularly for silicon carbide (SiC) and gallium nitride (GaN) devices. Below are their critical use cases:

1. SiC Single Crystal Growth

SiC wafers are vital for power electronics and electric vehicles. TaC-coated graphite crucibles and susceptors are used in Physical Vapor Transport (PVT) and High-Temperature CVD (HT-CVD) systems to:

● Suppress Contamination: TaC’s low impurity content (e.g., boron <0.01 ppm vs. 1 ppm in graphite) reduces defects in SiC crystals, improving wafer resistivity (4.5 ohm-cm vs. 0.1 ohm-cm for uncoated graphite).

● Enhance Thermal Management: Uniform emissivity (0.3 at 1000°C) ensures consistent heat distribution, optimizing crystal quality.

2. Epitaxial Growth (GaN/SiC)

In Metal-Organic CVD (MOCVD) reactors, TaC-coated components like wafer carriers and injectors:

● Prevent Gas Reactions: Resists etching by ammonia and hydrogen at 1400°C, maintaining reactor integrity.

● Improve Yield: By reducing particle shedding from graphite, TaC coatings minimize defects in epitaxial layers, crucial for high-performance LEDs and RF devices.

3. Other Semiconductor Applications

● High-Temperature Reactors: Susceptors and heaters in GaN production benefit from TaC’s stability in hydrogen-rich environments.

● Wafer Handling: Coated components like rings and lids reduce metallic contamination during wafer transfer

Ⅲ. Why TaC Coating Outperforms Alternatives?

A comparison with conventional materials highlights TaC’s superiority:

 Data sourced from industry comparisons

IV. Why choose VET ?

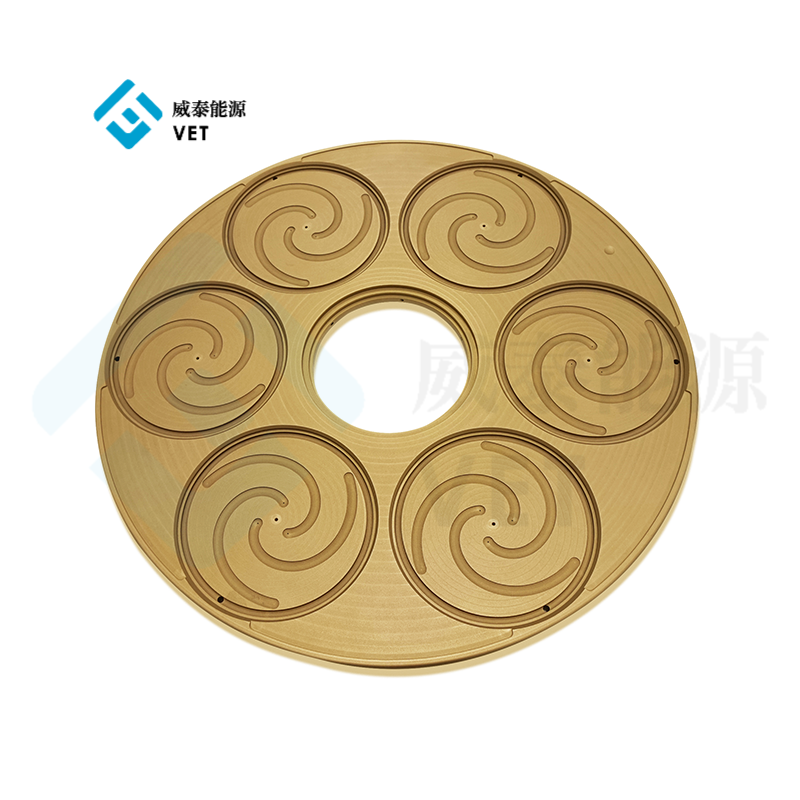

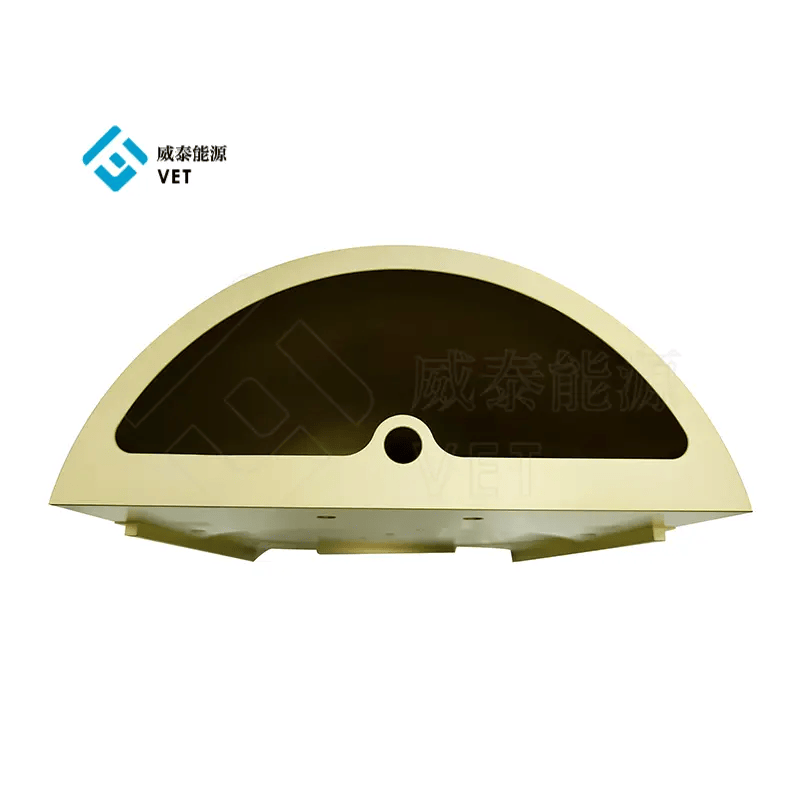

After continuous investment in technology research and development, VET‘s Tantalum carbide (TaC) coated parts, such as TaC coated graphite guide ring, TaC Coated Susceptor for Epitaxy Equipment, Tantalum carbide coated porous graphite material and Wafer susceptor with TaC coating, are very popular in the European and American markets. VET sincerely looks forward to becoming your long-term partner.
